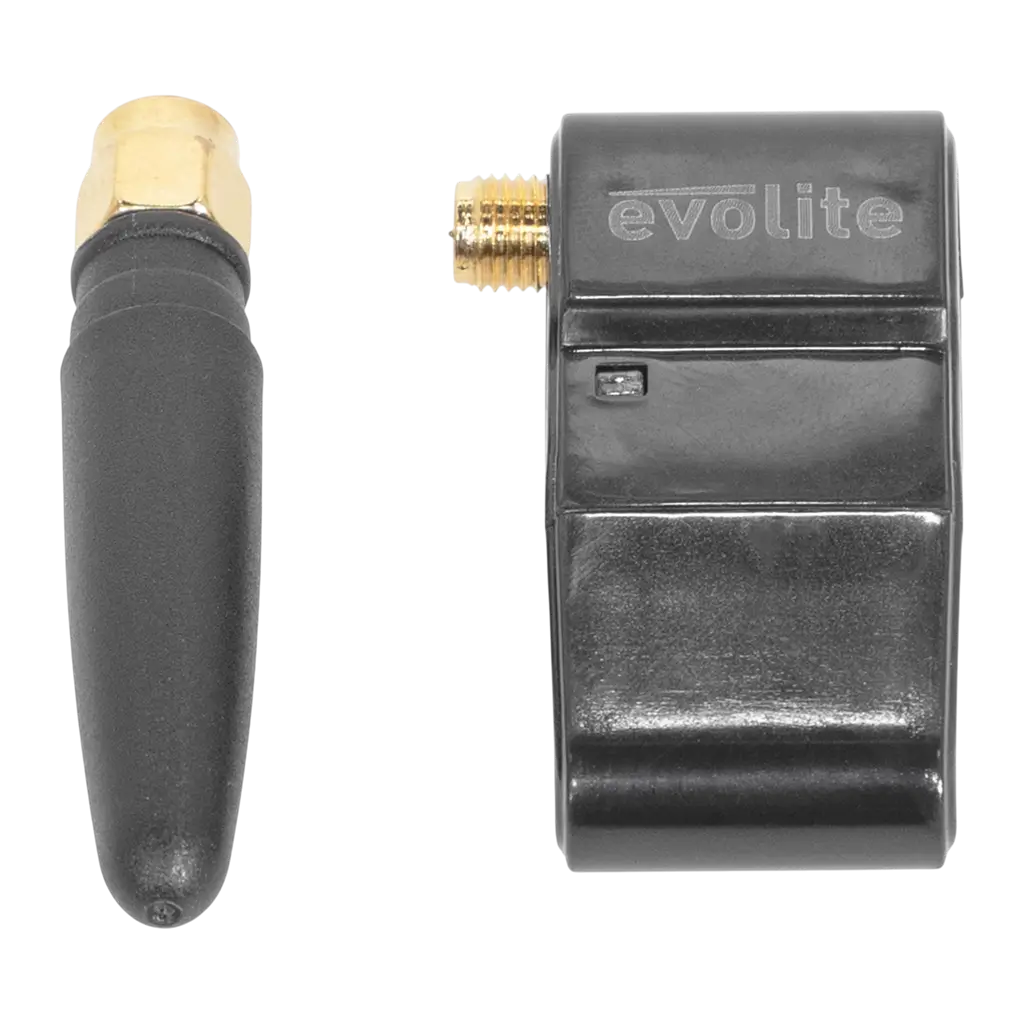

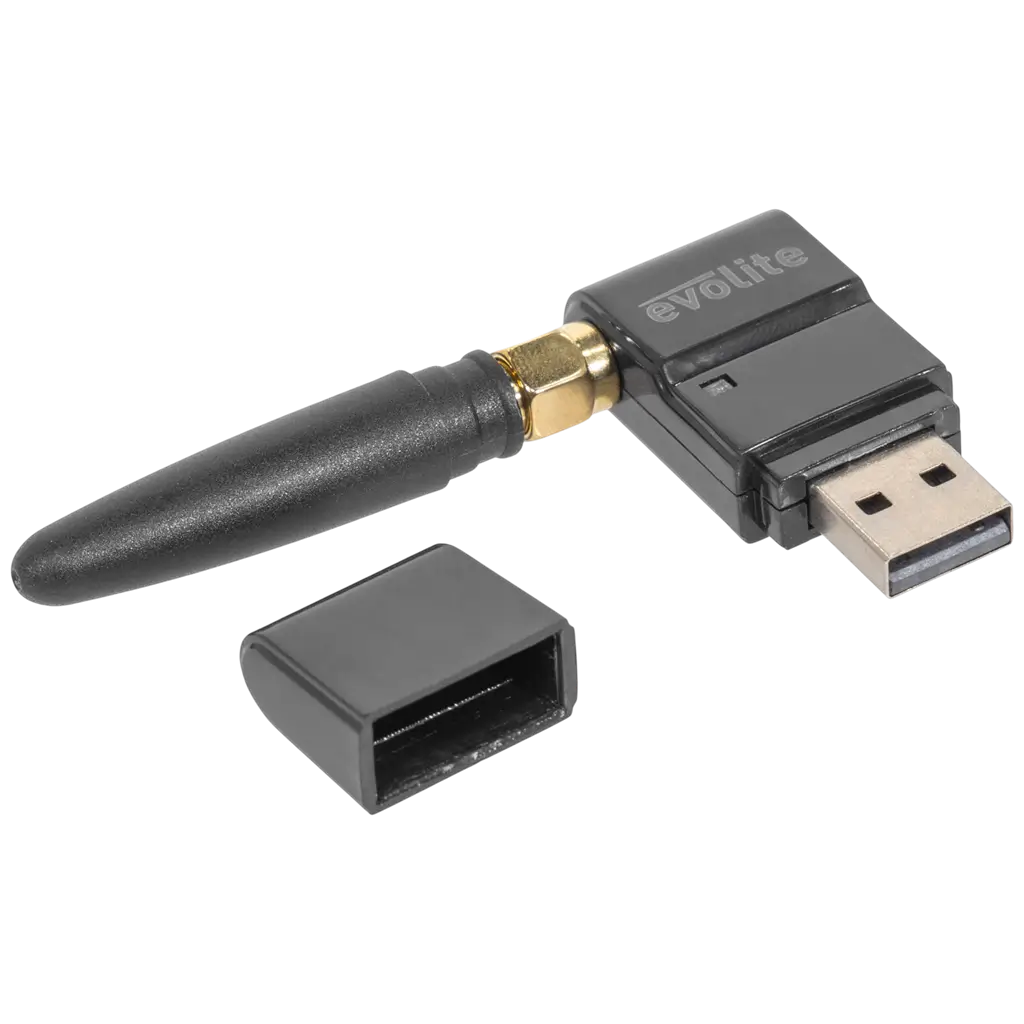

2.4 GHz USB Wireless DMX Transmitter/Receiver Dongle – Evolite

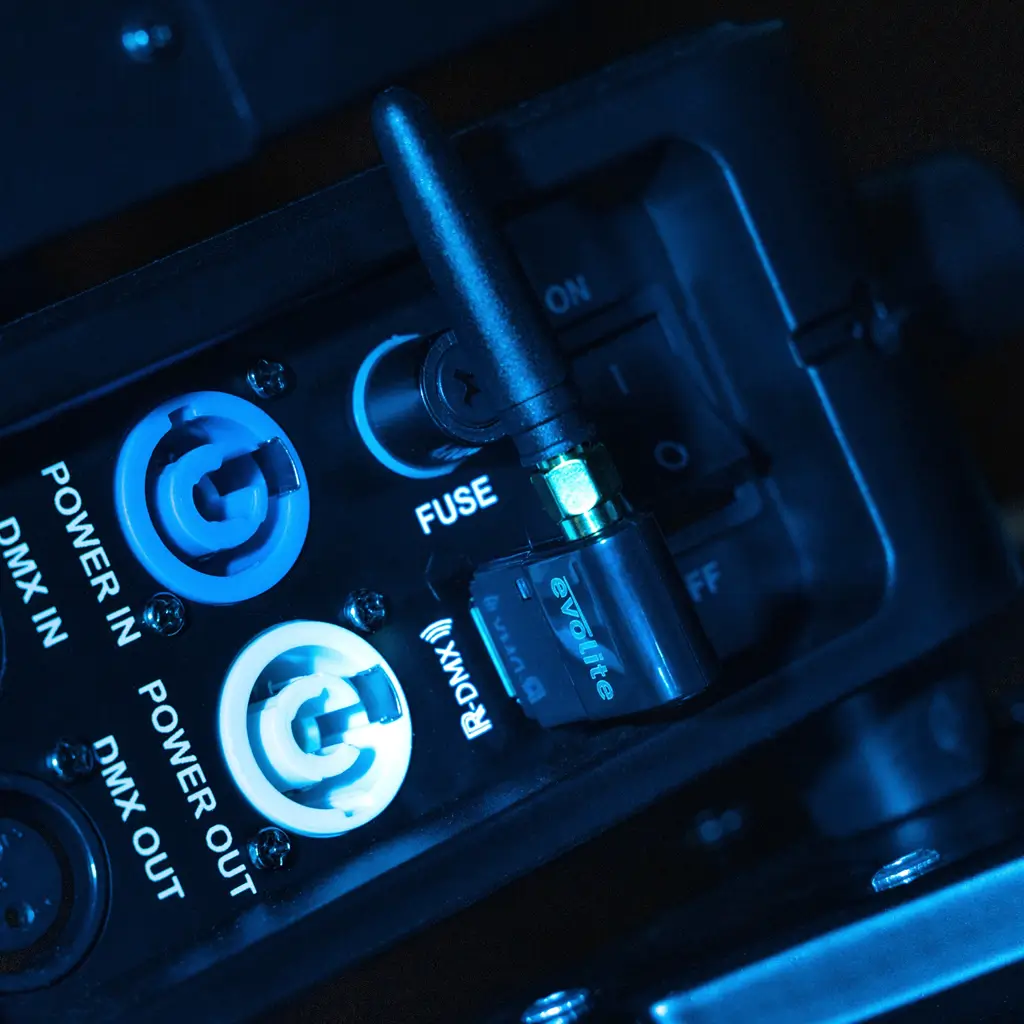

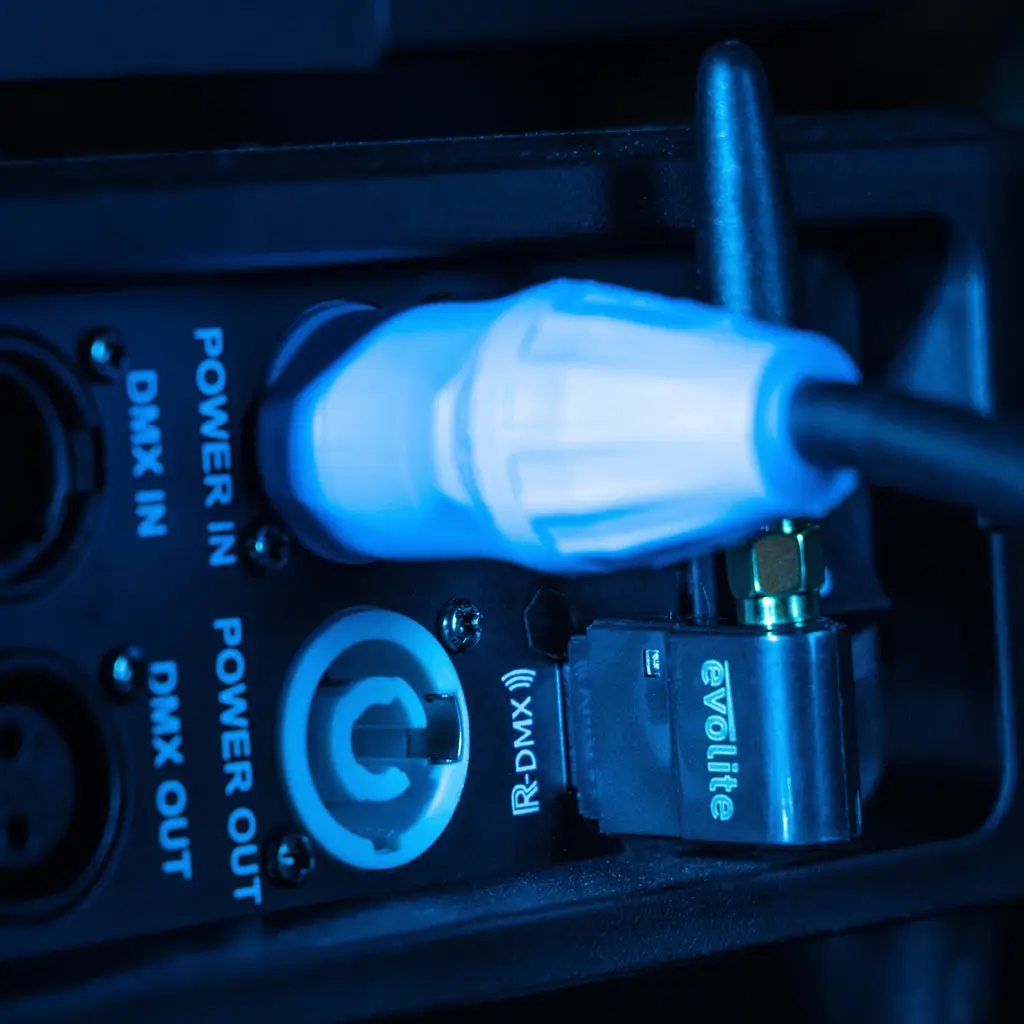

The Evolite R-DMX USB is a compact wireless DMX dongle that allows a DMX signal to be transmitted or received wirelessly between compatible devices. It plugs directly into a USB-A port designed to accommodate a wireless DMX adapter.
Operating on the 2.4 GHz band, it can be used as either a transmitter or a receiver depending on the configuration. Its maximum advertised range is 100 metres in unobstructed conditions, making it ideal for lighting set-ups on stage, in mobile control rooms or at events.
The R-DMX USB supports the Wi-DMX, WDMX and GZ protocols. It is powered directly by 5 V via USB, without the need for an additional power supply. It can be used with the Evolite EVO Spot 200, Mac Mah MAC Spot 200 and MAC Wash 1915Z-R, amongst others.
Features:
- USB-A wireless DMX dongle
- Transmitter and receiver function
- Frequency band: 2.402 to 2.480 GHz
- Maximum advertised range: 100 m in unobstructed conditions
- Compatible with Wi-DMX, WDMX and GZ
- ISM band with 79 channels
- Maximum RF power: 23 dBm
- Up to 512 DMX channels / 1 universe
- Powered directly via 5 V USB
- Male USB-A connector
- Dimensions: 40 × 20 × 10 mm
- CE RED certification
