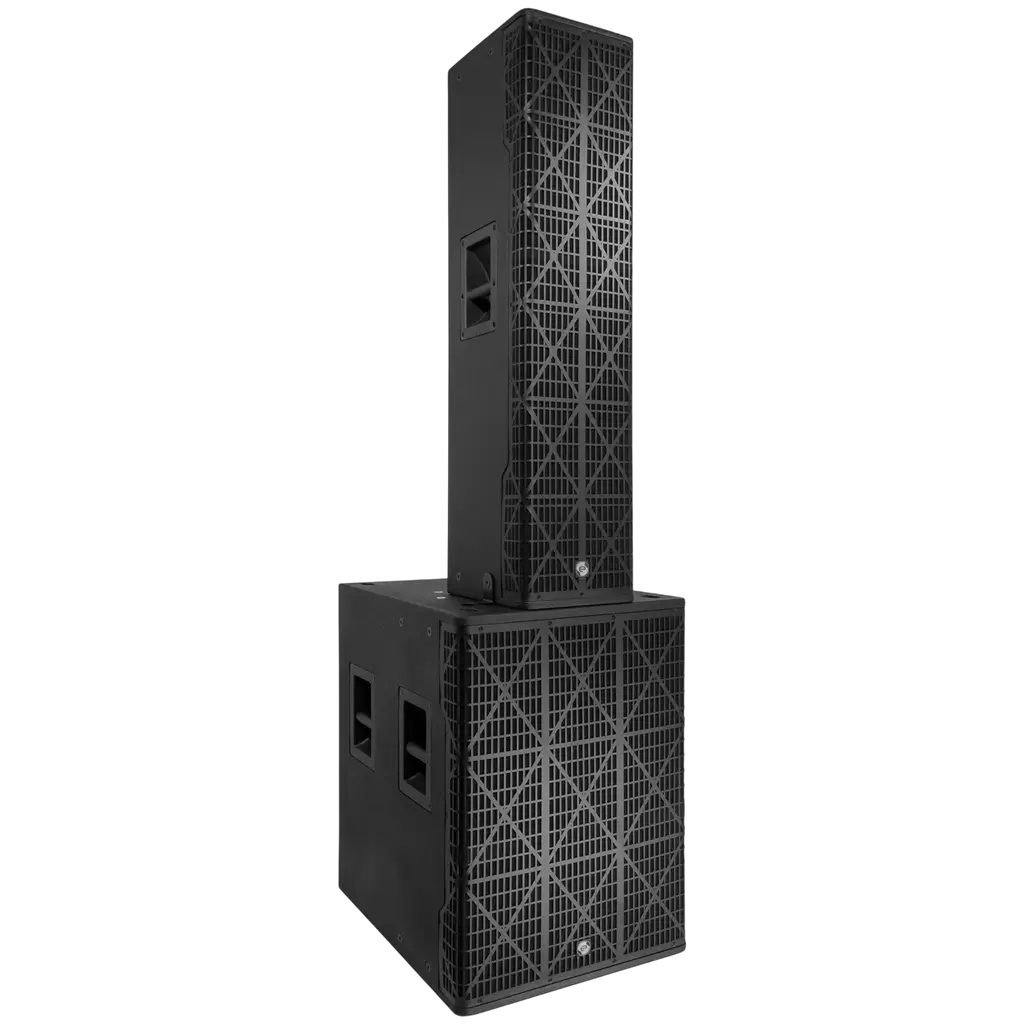

1700 W RMS 3-way active column system with 18" subwoofer – Elokance

1700 W RMS 3-way active column system with 18" subwoofer – Elokance

The Elokance Tower 18 is a 3-way active PA system designed for professional performances requiring power, precision and wide sound coverage. With a total power output of 1,700 W RMS and a sound pressure level of up to 141 dB SPL, it is particularly well-suited to concerts, DJ sets, parties, clubs, stages and large-scale events.

Its 3-way design features an 18-inch subwoofer, combined with four 8-inch midrange drivers and a 1.5-inch tweeter. This configuration effectively reproduces the entire sound spectrum, with powerful bass, precise midrange and detailed treble. Its frequency response ranges from 35 Hz to 18 kHz, delivering a balanced sound for both amplified music and voice reinforcement.

The Tower 18 features a triple Class D amplifier that distributes power across each frequency range: 1,000 W RMS for bass, 600 W RMS for midrange and 100 W RMS for treble. This dedicated amplification optimises the performance of each transducer and delivers dynamic sound reproduction, even at high volume levels.

Its 48 kHz / 56-bit DSP ensures precise signal processing and offers five audio presets: Original, Live, Vocal, DJ and User. These different modes allow you to quickly adapt the system’s behaviour to the intended use, whether it’s a concert, a DJ set, a public address event or a customised setup.

The horizontal coverage of 100° and vertical coverage of 40° provide wide, controlled sound coverage, facilitating sound distribution across a dance floor, stage or large-capacity event venue. This controlled dispersion helps maintain a consistent sound pressure level across a wide listening area.

For professional installations, the Tower 18 also features an RS485 control network accessible via two RJ45 connectors. Dedicated software allows certain system parameters to be adjusted remotely, simplifying set-up for complex installations or when multiple systems are used simultaneously.

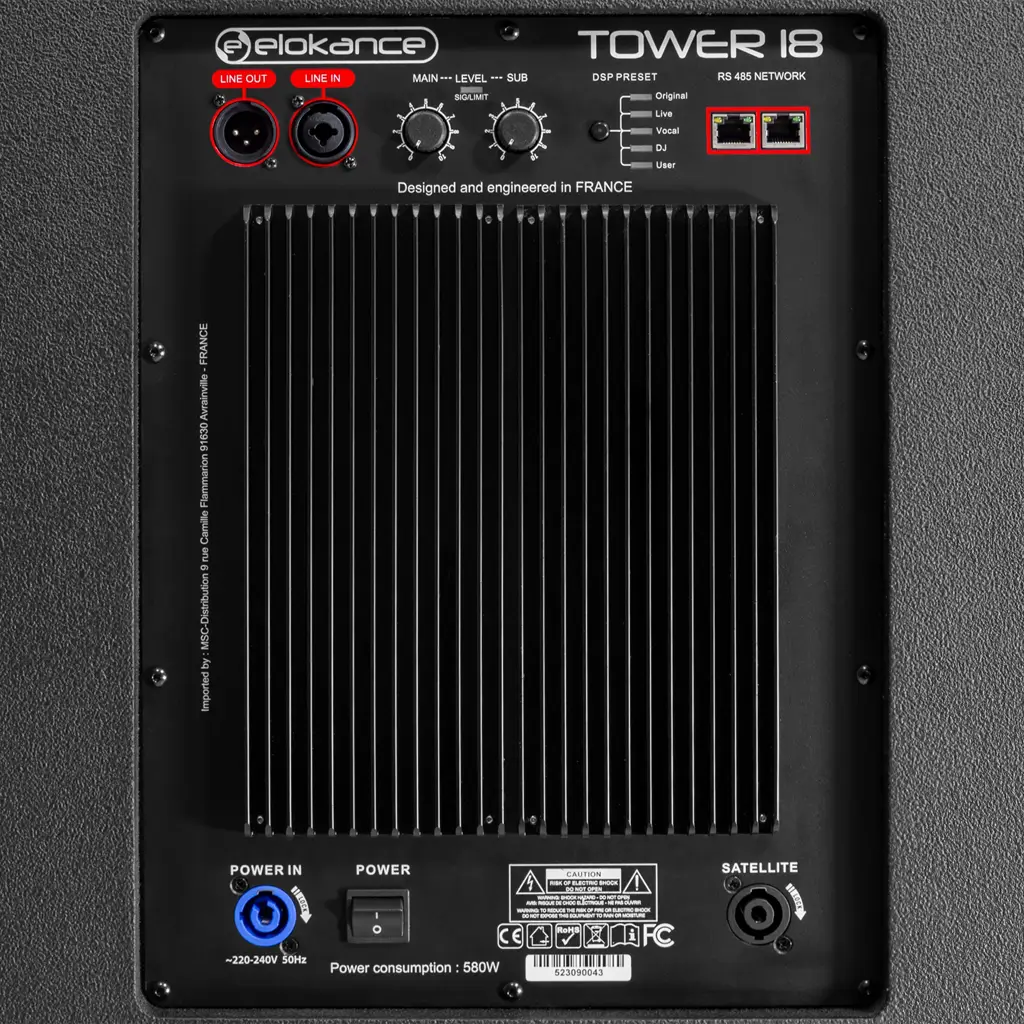

Its connectivity includes an XLR/6.35 mm jack combo line input, an XLR line output, and SpeakON connections for linking the satellite to the subwoofer. Its 15 mm birch plywood construction provides rigidity and robustness, ensuring it can withstand the demands of mobile performances and professional installations.

Features:

• Professional 3-way active PA system
• Total power: 1,700 W RMS
• Maximum power: 3,400 W
• Class D amplification
• Power distribution: 1,000 W RMS bass + 600 W RMS midrange + 100 W RMS treble
• 18" subwoofer with 4" voice coil
• 4 x 8" midrange drivers with 2" voice coils
• 1.5" tweeter with 2" voice coil
• Maximum sound pressure level: 141 dB SPL
• Frequency response: 35 Hz to 18 kHz
• Built-in 48 kHz / 56-bit DSP
• 5 presets: Original, Live, Vocal, DJ and User
• Horizontal coverage: 100°
• Vertical coverage: 40°
• Remote control via RS485 network
• 2 RJ45 connectors for the control network
• XLR/6.35 mm jack combo line input
• XLR line output

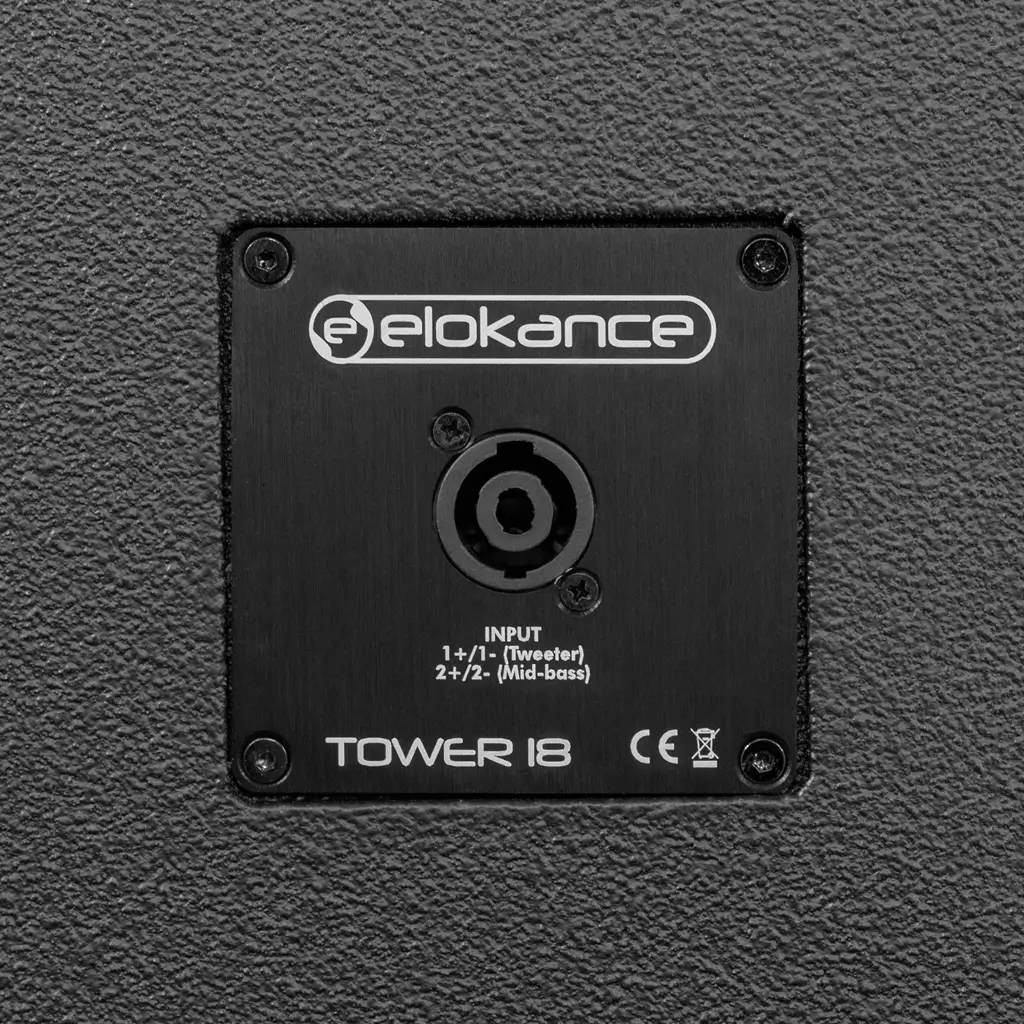

• SpeakON connectors between the main unit and the satellite
• Robust 15 mm birch plywood construction
• Subwoofer dimensions: 765 × 665 × 540 mm
• Subwoofer weight: 46.5 kg
• Satellite dimensions: 1,160 × 330 × 270 mm
• Satellite weight: 32 kg
• Total net weight: 78.5 kg
