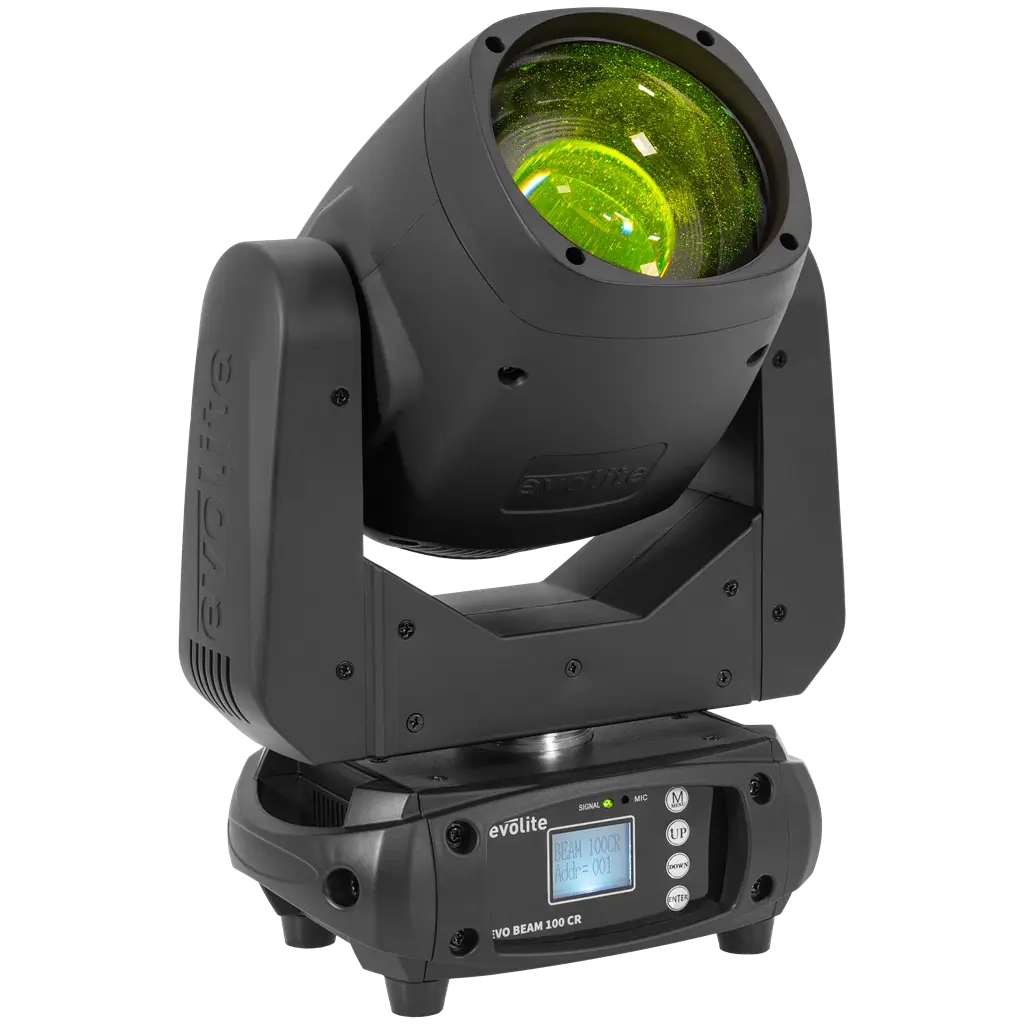

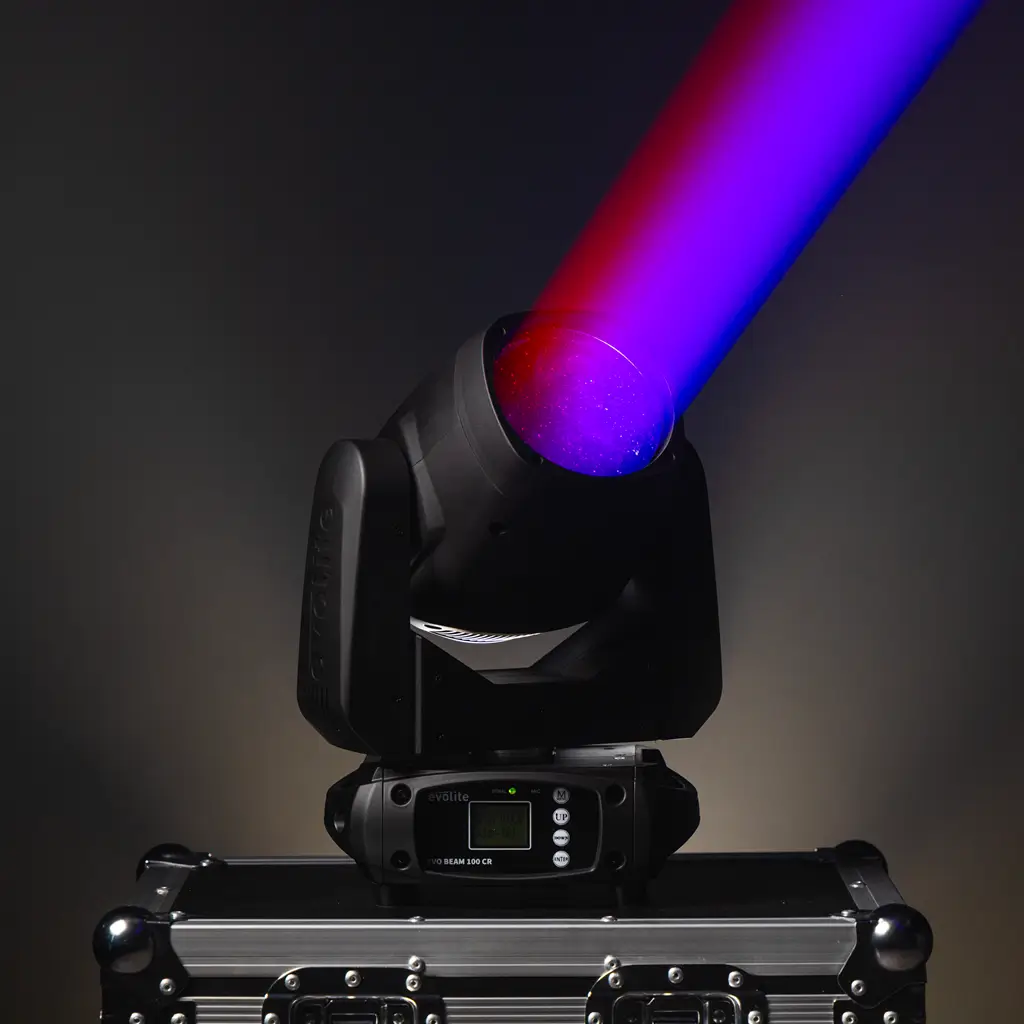

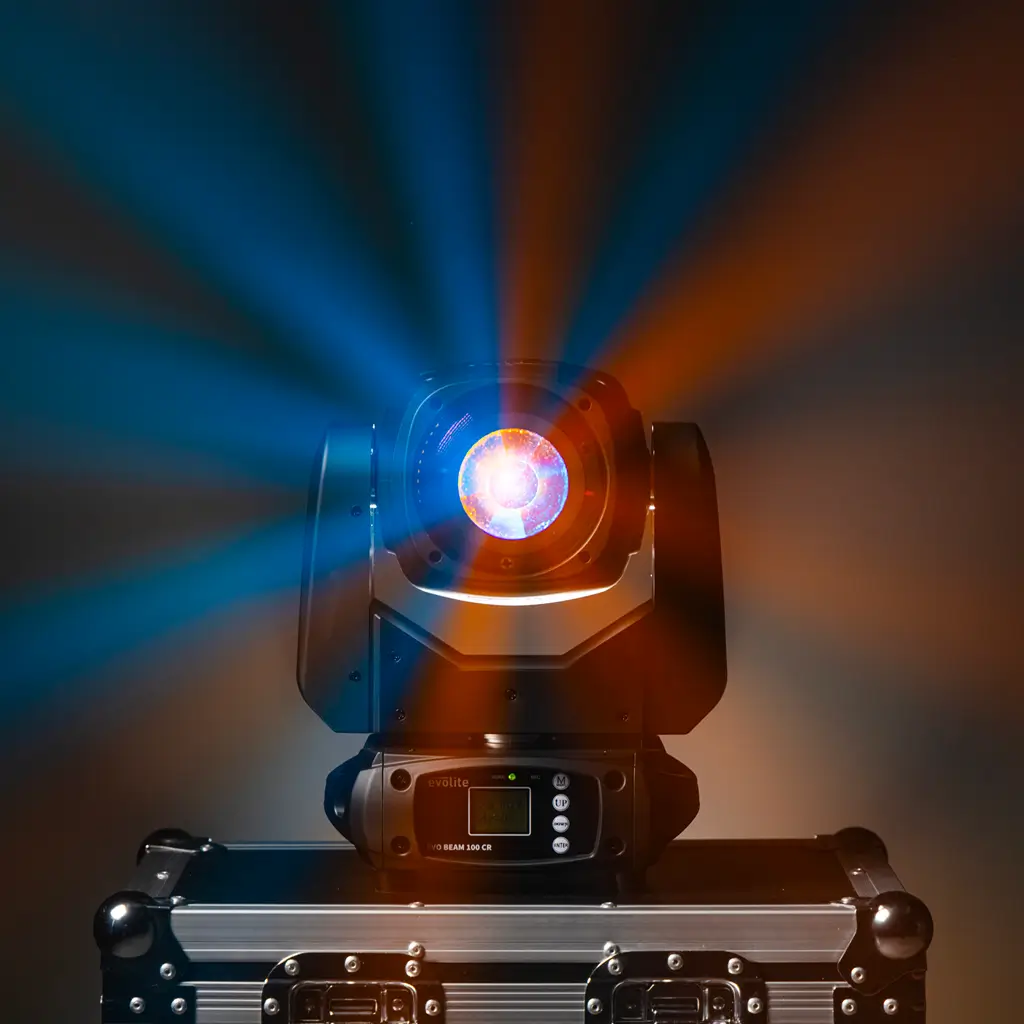

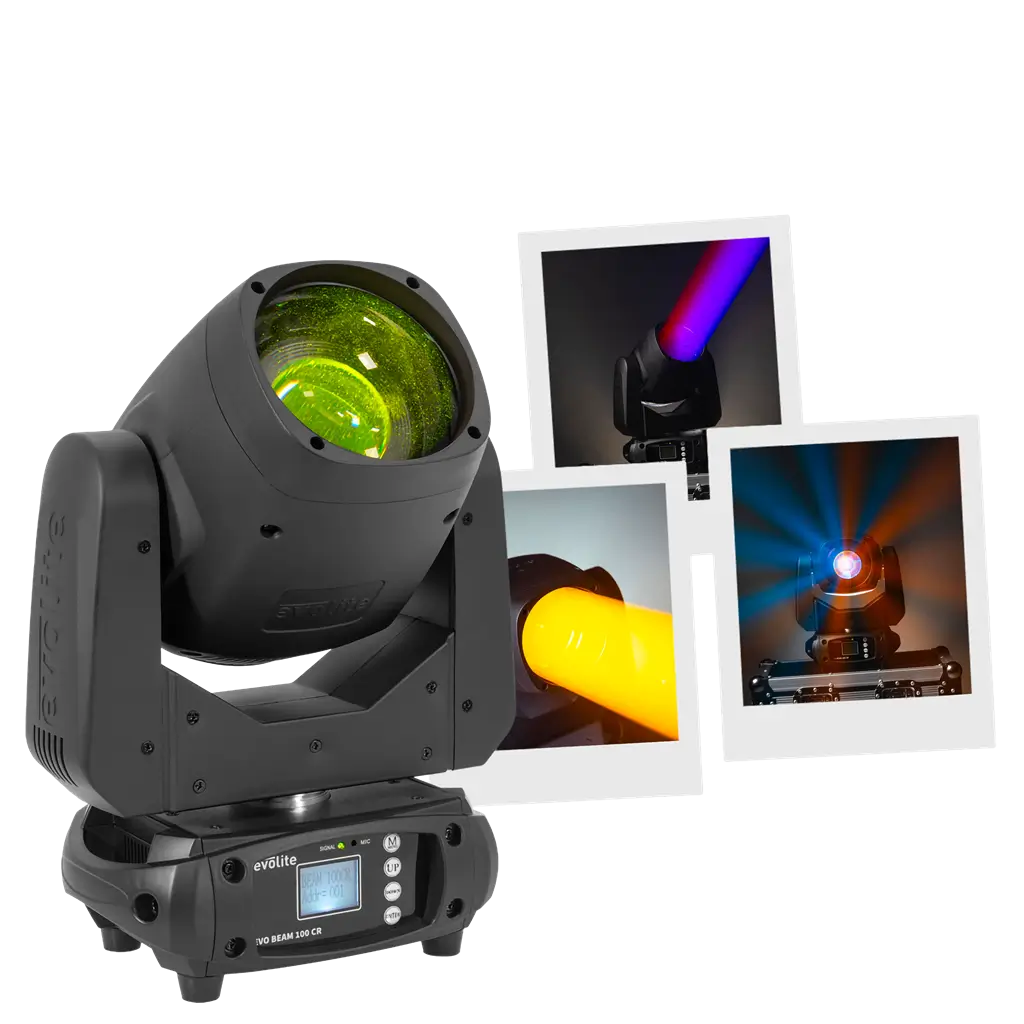

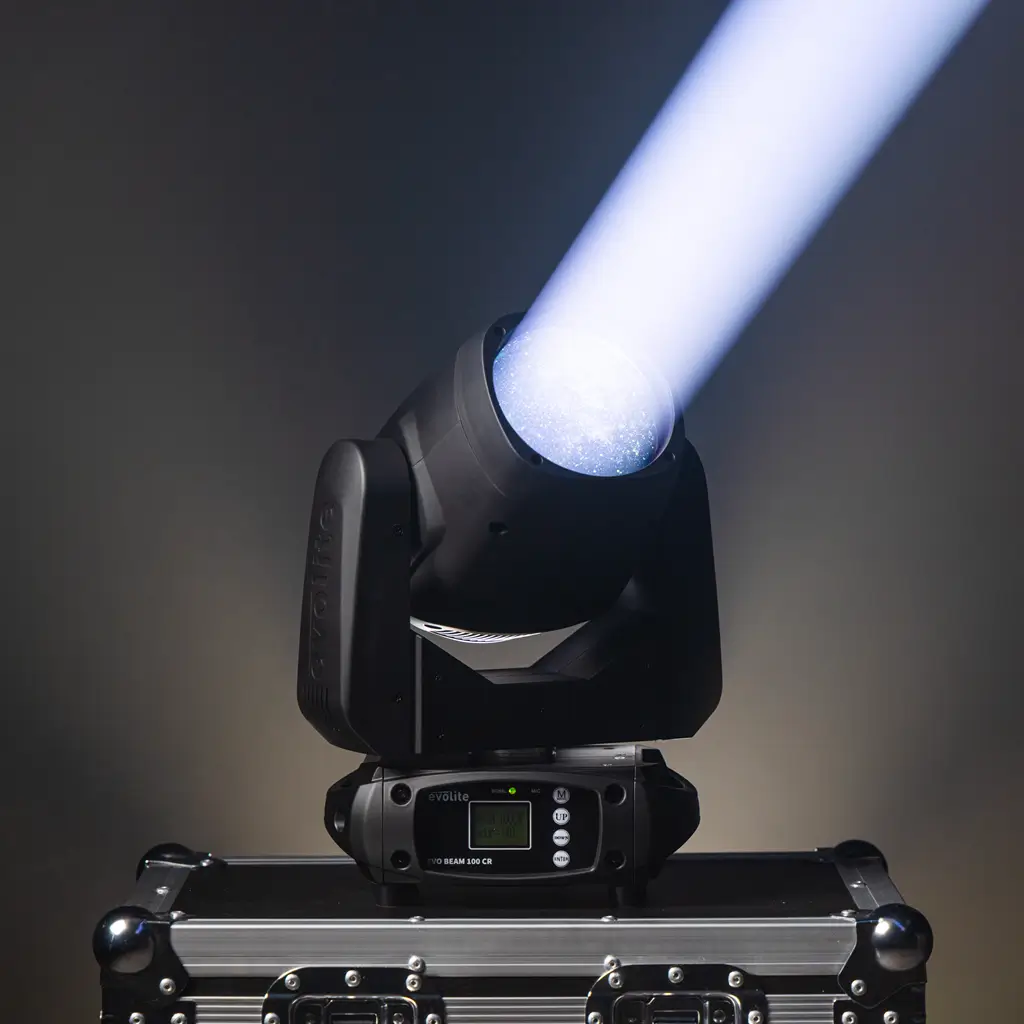

Beam head - Model Evo Beam 100-CR - 100 W LED with prism and motorised focus - Evolite
The Evolite Evo Beam 100-CR is a compact and powerful beam head, ideal for clubs, events and TV sets.
Equipped with a 100 W (7500 K) white LED, it delivers a 3° beam reaching 190,500 lux at 2.5 m, perfect for drawing sharp, striking lines of light.
Its motorised focus and ultra-transparent optics guarantee precise projection, while the 16-bit PAN and TILT rotations provide complete stage coverage.
DMX controllable (12 or 14 channels), master-slave, sound detection or automatic, it can be adapted to any configuration.
Its 8-facet rotating prism and 14 fixed gobos create a variety of visual effects, enhanced by a wheel of 12 colours + white.
Compact, silent (55 dB) and easy to install thanks to its powerCON connectors and Omega clamps, it works equally well in a fixed installation or in a mobile kit.
Technical specifications :
- Type : LED Beam head - Compact Range series
- Source: 100 W white LED (7500 K)
- Luminous flux: 190,500 lux @ 2.5 m
- Beam angle: 3
- DMX modes: 12 or 14 channels
- Operating modes : DMX, automatic, master-slave, sound detection
- Focus: Motorised
- Prism: 8 facet rotating, bi-directional
- Colour wheel: 12 + white
- Gobo wheel: 14 fixed
- PAN/TILT rotation: 360°/540°/630° and 90°/180°/270

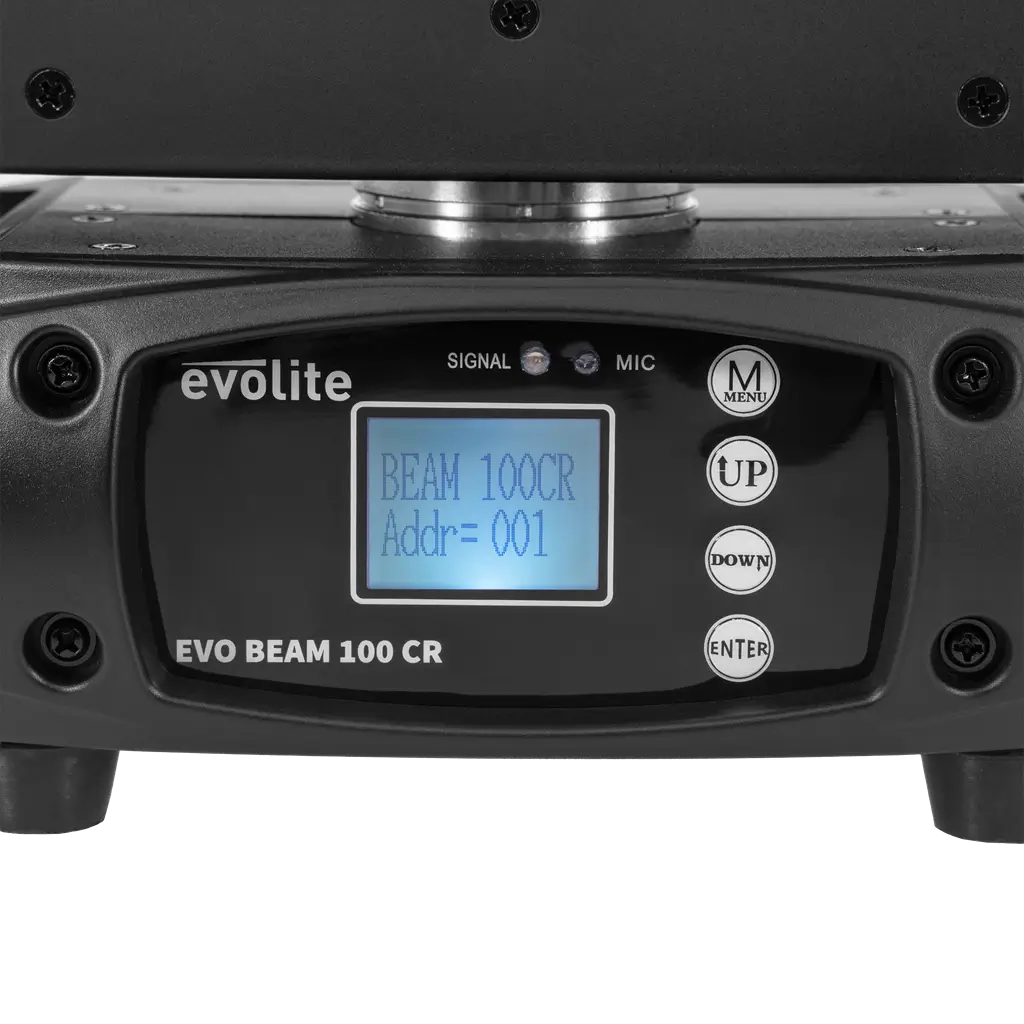

- Screen: 1.8" colour TFT
- Noise level: 55 dB
- Power consumption: 120 W max
- Power supply: powerCON input/output
- Device dimensions: 259 × 159 × 337 mm
- Net weight: 6 kg (7.3 kg gross)
- Mounting: Omega clamps included
A compact, precise beam, ideal for powerful lighting effects in a lightweight, professional format.
