DMX Transceiver - Model DWT-512 - 512 wireless channels - Evolite

DMX Transceiver - Model DWT-512 - 512 wireless channels - Evolite

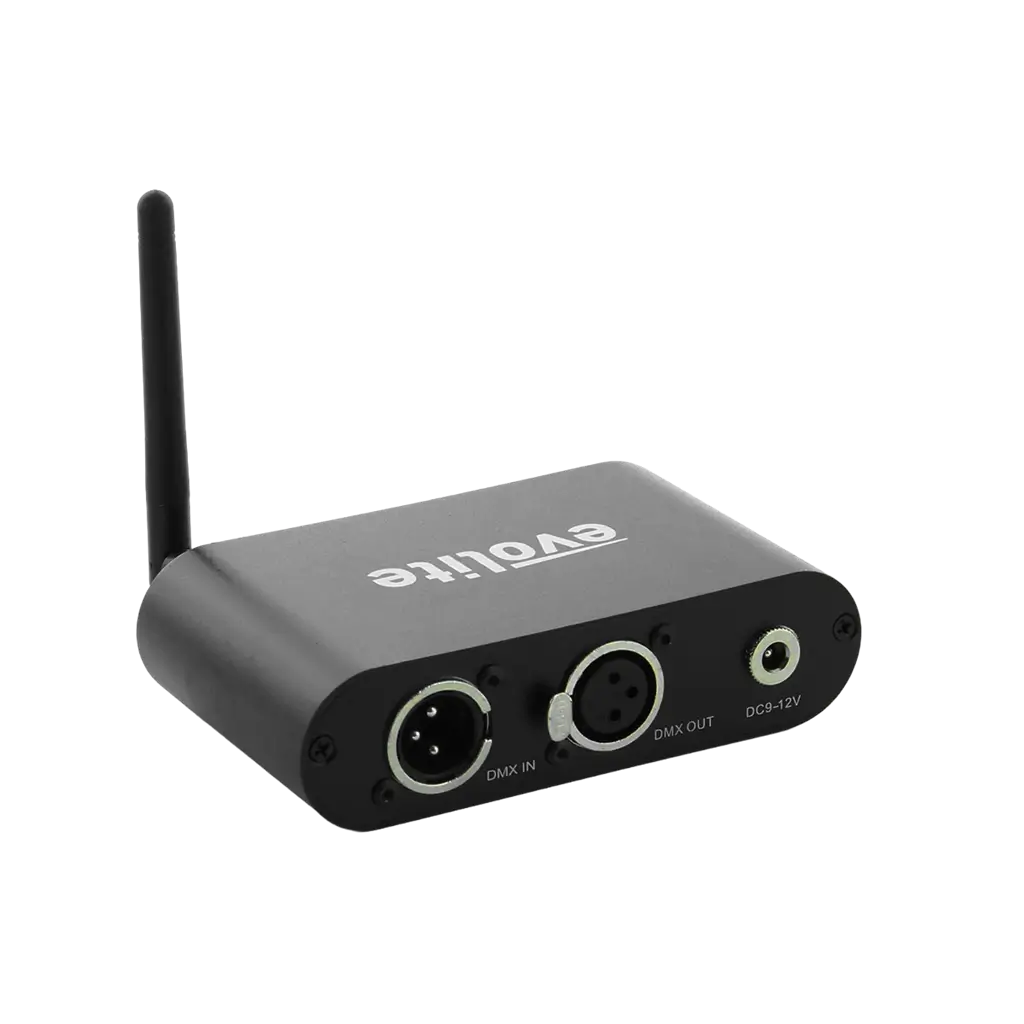

Evolite's DWT-512 wireless DMX transceiver provides fast, reliable transmission of DMX signals up to 600 metres unobstructed. Operating on the 2.4 GHz band with FHSS technology, it offers precise, interference-free control thanks to a 32-bit ARM processor and instant DMA transfer. Simple to use, it features a single pairing button and multi-coloured indicator light for intuitive configuration.

Technical specifications:

• Frequency band: 2.402 - 2.480 GHz (ISM)
• Technology: FHSS (79 channels, 1100 hops/s)
• Processor: 32-bit ARM, delay-free DMA transfer
• Range: 600 metres (unobstructed)
• Modulation: GFSK
• Transmit power: 23 dBm
• Receive sensitivity: -94 dBm
• Compatibility: Wireless Solution (W-DMX) and Wi-DMX
• Connections: XLR 3-pin (transmitter / receiver)

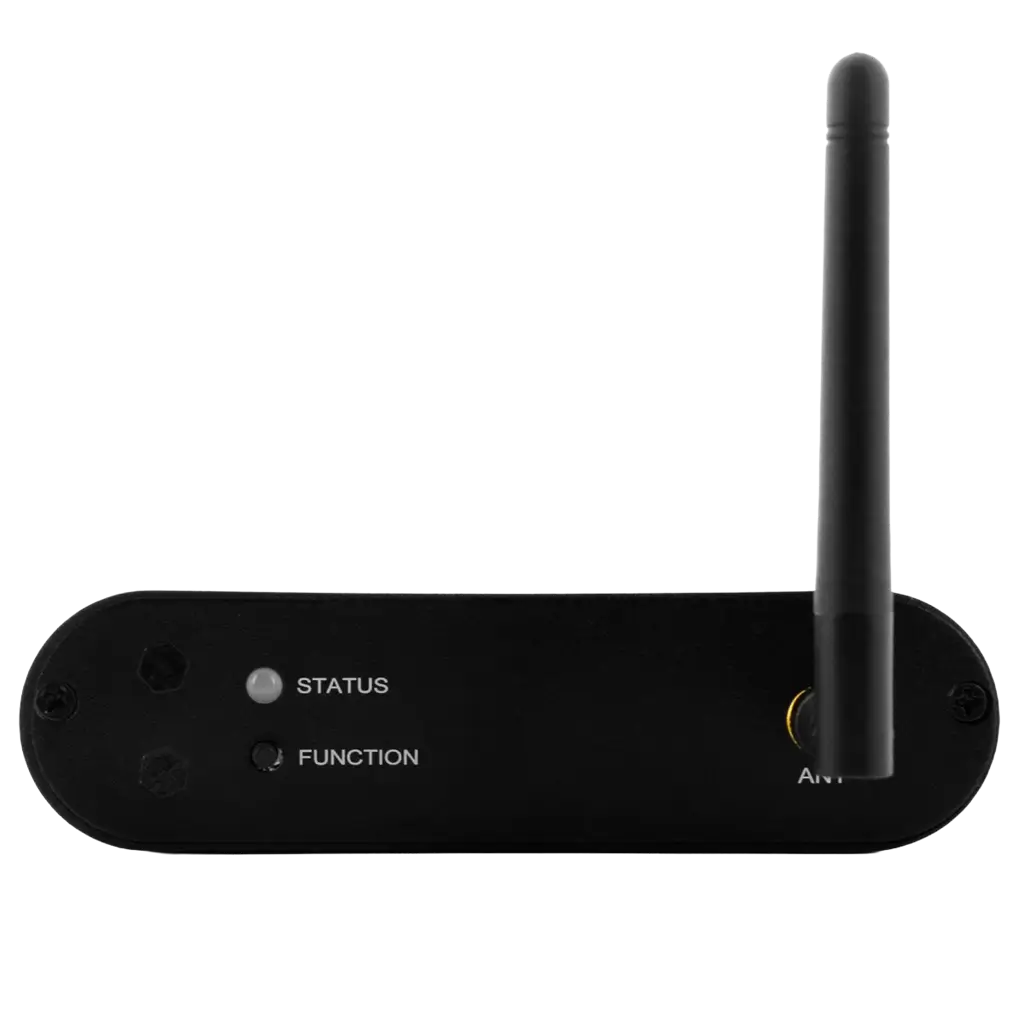

• Operation: one button with illuminated status indicator

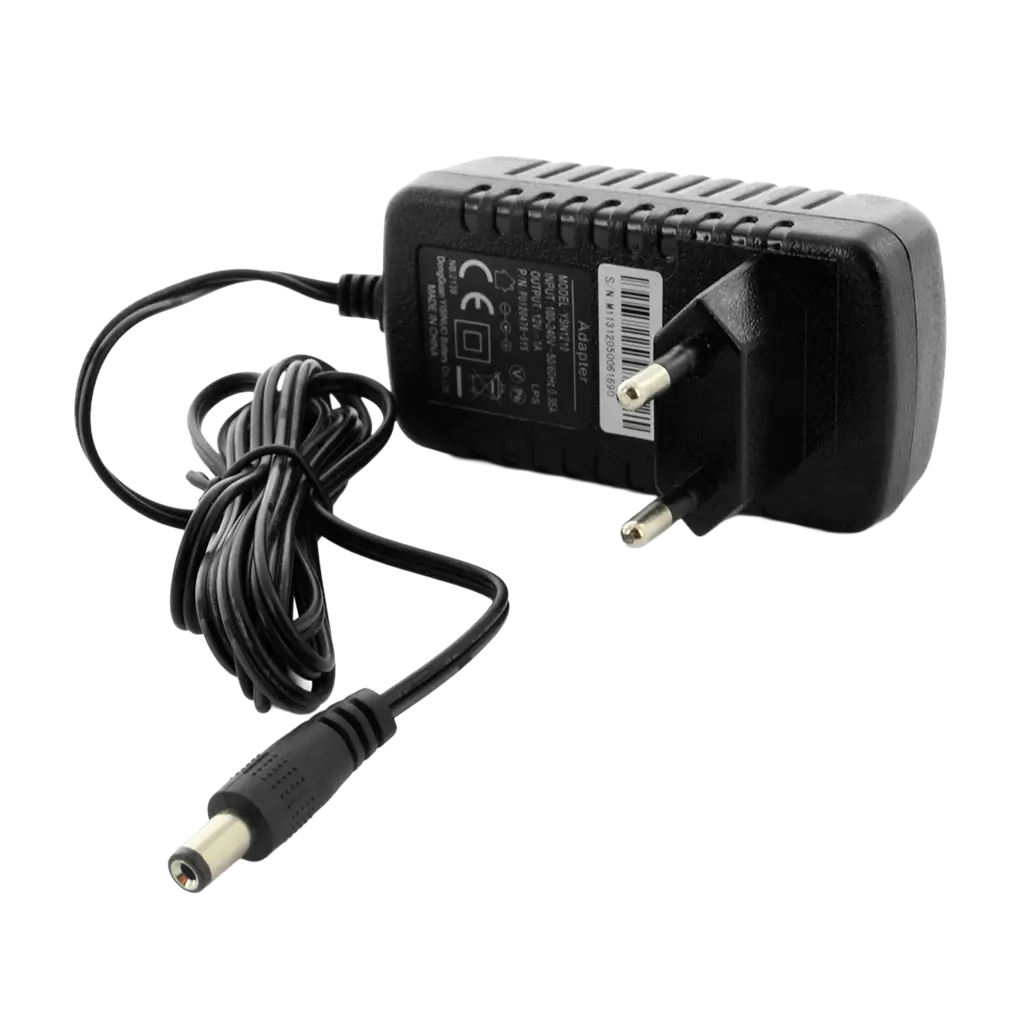

• Power supply: 110-240 V AC / 50-60 Hz via 12 V DC adapter
• Power consumption: 350 mA
• Dimensions: 129 × 114 × 34 mm
• Weight: 310 g

A simple, reliable device for stable, high-performance wireless DMX transmission.
