FC2 Foam gun

FC2 Foam Cannon

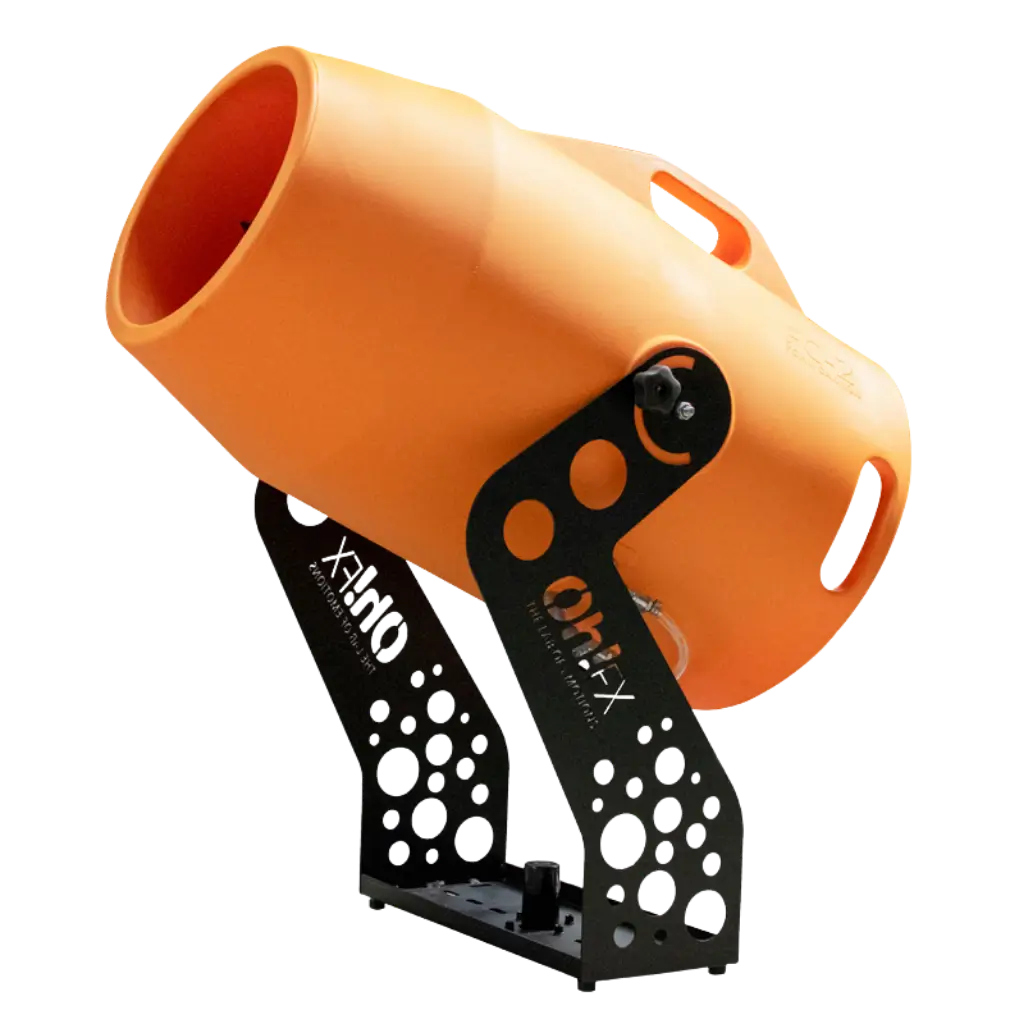

The FC2 foam cannon is ideal for large events, with its adjustable speed for even more foam. No need for a tank or pump, the hose (supplied) connects directly to the source when the water pressure exceeds 1.8 bar. The machine is made of polyethylene and can be installed on a tripod or flat surface.

Operates on low voltage (30v) and ip68 motor protection (100% waterproof: fully submersible).

Includes 110-220v to 30v power supply/transformer and hose.

Technical specifications:

• Dimensions: 58.8 x 54.2 x 84.3 cm
• Weight: 35Kg (including power supply)
• Supply voltage : 100-240V AC 50/60Hz
• Operating voltage: 30V DC
• Power rating: 720W MAX
• Water temperature: 15º to 40º C
• Inlet pressure (water): 26 - 87 PSI / 1.8 - 6 BAR
• Range: 8 to 10 metres

Fluid consumption as a function of water pressure (water source connected):

• 2.06 BAR / 30 PSI : 3.33L / min.
• 1.75 BAR / 25 PSI: 2.86L / min
• 1.3 BAR / 20 PSI: 2.5L / min

Instruction manual available on request.
